Minor pressure differences occur in normal systems when the water temperature rises and falls - this is not hazardous.
But in large and extreme systems with a significant difference between load and stationary this may cause excessive pressure and cause damage.

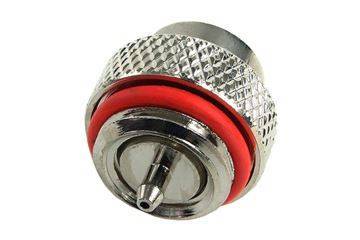

This air pressure valve prevents the problem via a T-piece or in a reservoir with additional outputs!
The air pressure valve has universal 1/4" BSPP (G1/4) thread to fit in all of our products - and it extends only 16mm from the thread so that it can fit into all places!
It comes with O-ring and releases air pressure at 0.3-0.4 kg/cmý or 4.3 to 5.7 psi (0.3-0.4 bar).
Specifications:
Material: Silver plated brass
Thread: 1/4" BSPP (G1/4)
Thread length: 4mm
Length without threads: 16mm
Outer diameter 17mm
Release of Pressure: 0.3-0.4kg/cm ý or 4.3-5.7psi (0.3-0.4 Bar)
Product code:
PH021
