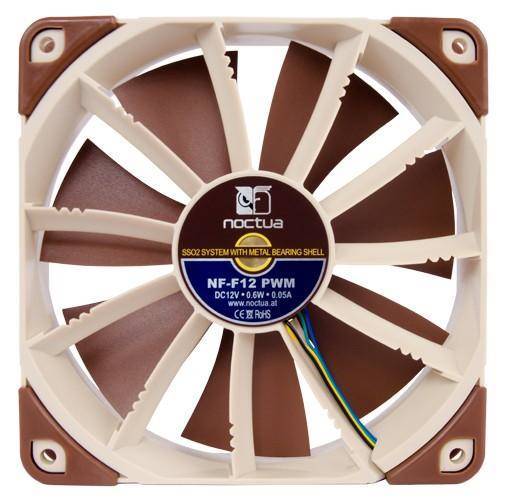

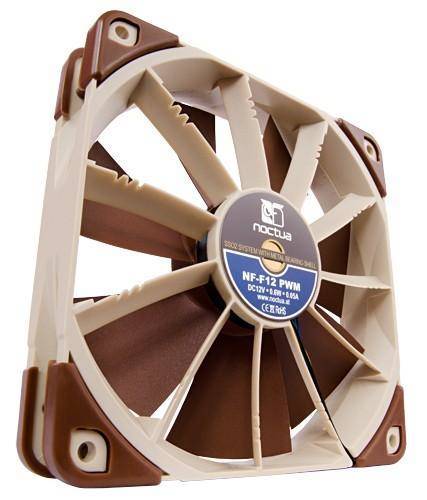

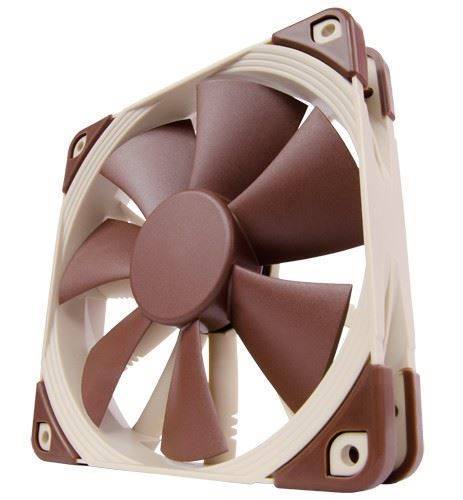

Noctua NF-F12 PWM - 120mm

Noctua NF-F12 PWM's special design provides an extremely high static pressure and focuses the airflow for superior performance on heatsinks and radiators!

Noctua NF-F12 PWM comes with Noctua's newly developed Focused FlowT system and 7 leaves. Built into the fan is a framework that focuses airflow.

In addition, the fan is made with a wide range of advanced aerodynamic design measures, the second generation SSO-Bearings and Noctua's new custom designed PWM IC for fully automatic control.

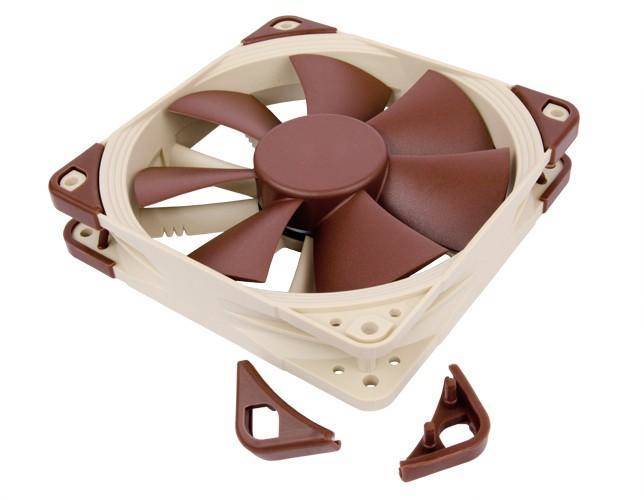

Noctua NF-F12 PWM comes with modular cabling, integrated anti-vibration pads and two speed settings.

Noctua NF-F12 a super quiet fan and it can be completely silent with a Low-Noise Adaptor (LNA). The unique SSO2 bearings help to keep noise to a minimum, while providing extremely long life!

An optimal choice for coolers, radiators and other pressure demanding applications!

The fan is simply for those who only want the best of the best - and Noctua provides 6 year warranty!

Specifications:
Model name (manufacturer's number): Noctua NF-F12 PWM
Material: Plastic
Color: Beige/Brown
Fan size: 120x120x25mm
RPM: 1500 RPM +/- 10%
Speed with L.N.A.: 1200 RPM +/- 10%
Airflow: 93,4 mü/h
Airflow with L.N.A: 74,3 mü/h
Noise level: 22.4 dB (A)
Sound level L.N.A: 18.6 dB (A)
Static pressure: 2.61 mm H2O
Static pressure with L.N.A: 1.83 mm H2O
Bearings: SSO2 bearings
Input Power (W): 0.6
Input Current (A): 0.05
Volt (V): 12
Connection: 3-pin and 4-pin
MTBF> 150,000 hours
Warranty: 6 years

Compatibility:
120mm fan mounting holes

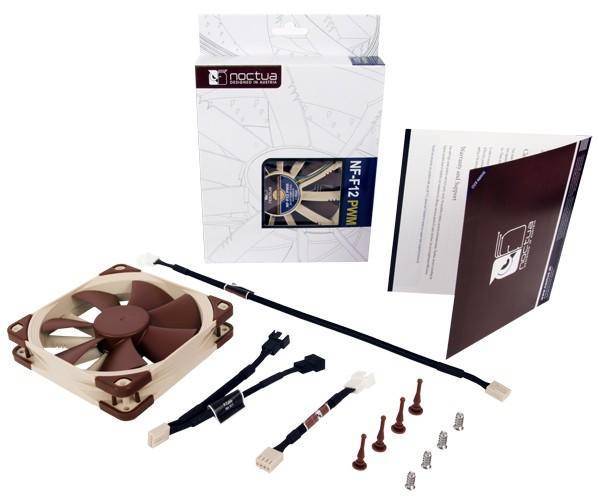

Product contains
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan screws

Product code:
08NO009
