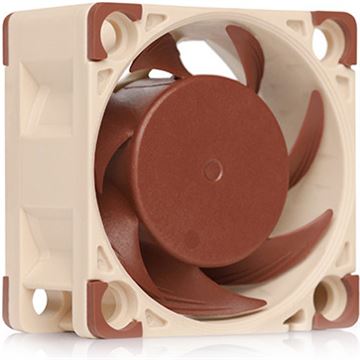

Small 40x40x20 mm fan from Noctua, Noctua NF-A4x20 FLX is a nice little fan that fits into smaller spaces.
Included is also anti-vibrationkit, mounting screws, Low-Noise Adaptor (L.N.A.), Ultra-Low-Noise Adaptor (U.L.N.A.) etc.
A Noctua NF-A4x20 FLX Fan - 40x20 mm is for everyone wanting a small and quiet fan.
Technical Specifications
Size: 40x40x20 mm
Connector: 3-pin
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 5000 RPM
Rotational Speed with L.N.A. (+/- 10%): 3700 RPM
Airflow: 8,3 m³/h
Airflow with L.N.A.: 8,3 m³/h
Acoustical Noise: 14,9 dB(A)
Acoustical Noise with L.N.A. 12,2 dB(A)
Acoustical Noise with U.L.N.A. 8,5 dB(A)
Static Pressure: 2,26 mm H₂O
Static Pressure with L.N.A.: 1,75 mm H₂O
Static Pressure with U.L.N.A. 1,23 mm H₂O
Max. Input Power: 0,6 W
Max. Input Current: 0,05 A
Voltage: 12 V
MTBF: > 150.000 h
The package includes:
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
OmniJoin Adaptor Set
30cm Extension Cable
NA-AV3 anti-vibration mounts
4 Fan Screws
Product code:
08NO033
