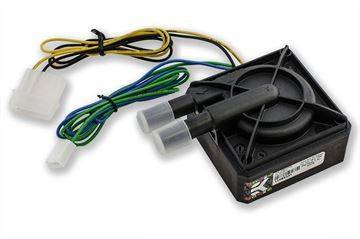

EK-DDC 3.2 PWM (12V PWM pump)

Laing DDC-3.2 PWM high-performance water pump with power management control (via PWM - pulse width modulation) of rotation speed trough motherboard BIOS or dedicated fan controller.

This pump features 3/8" (10mm) non-removable plastic barbs to support any 12mm ID tubing and is compatible with any EK-DDC X-TOP pump top and X-RES series pump reservoir combo unit.

Despite a remarkably small footprint of 2.4" square, the pump features an astounding 5,2m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).

It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.

Technical specifications:
- Max Head: 5.2 m
- Rated voltage: 12 Volt DC
- Power consumption: DDC 3.2 18 W (max. 18 watt)
- Acceptable media: Water, Water-/Glycol Mixtures (EK-Ekoolant)
- Max. system temperature: 60 °C
- Pipe Connections: 10 mm (3/8") ID tubing
- Xylem original model name: DDC-3.25TPPWM4
- Noise level: 24-26db

Product code:
04EK023
