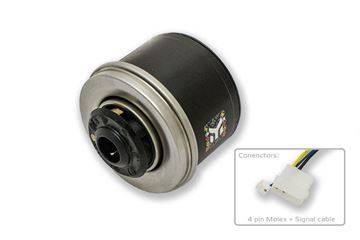

EK - D5 Vario Motor (12V DC Pump Motor)

EK - D5 Vario Motor (12V DC Pump Motor) is the motor normally included in Laing D5 pumps. Here you get only the core/motor without the original top.

But why pay for an entire pump system, if you intend to replace the top?

The pump is really powerful with a pumping height of 3.9 m (pressure head).

The pump can be connected directly to the PSU, and then starts up along with your computer, to make sure that there will be no overheat of your system.

EK-D5 Vario Motor (12V DC Pump Motor) is the strongest pump core within the Laing D5 series and can even be connected to 24V for maximum performance.

The pump can be set to 5 different RPM, so you can set the perfect noise and performance ratio.

Step 1: 1800 rpm
Step 2: 2550 rpm
Step 3: 3300 rpm
Step 4: 4050 rpm
Step 5: 4800 rpm

Specifications:
Dimensions (WxHxD): 65x65x57mm (without connectors)
Motor: Electronically commuted spherical motor
Rated voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8-24V DC
Pressure head at 12V: 3,9m
Maximum flow: 1500l/h (24V) / 1200l/h (12V)
Pumped media: Water, water/glycol mixtures (glycol in very small portions)
Maximum system temperature: 60°C
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
Sound level: up to 35 db

Product code:
04EK024
