Technical Specifications:
- Dimensions (W x D x H): 63 x 68 x 55 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
- Xylem original model name: DDC-3.25TPPWM4
- Noise level: 24-26db
Package includes:

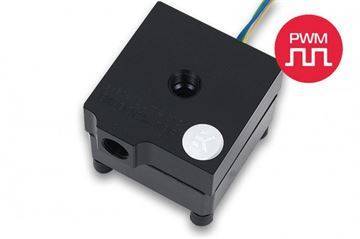

- EK-XTOP DDC - Acetal
- EK-DDC 3.2 PWM 12V DC pump motor
- mounting mechanism
- installation manual
Note: This product is delivered without fittings.
Fittings with
¼" BSPP (G1/4) threads will fit this product.
